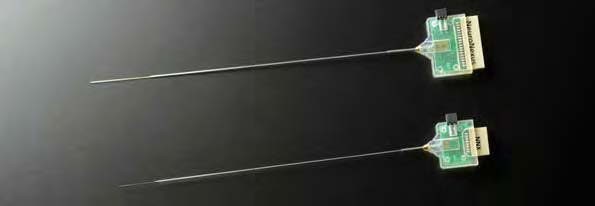

Vector Array

Product Code: 7

The Vector Array™ is an all-new probe design optimized for large animal deep brain applications (e.g. non-human primate, porcine, etc). The probe design is completely overhauled to fully take advantage of our industry-leading silicon probe technology.

The proximal body of the Vector Array™ is made of a rigid metal tube (Support Body), while the distal end interfacing with the target region is a customizable NeuroNexus silicon electrode array. This hybrid assembly combines a high-quality, proven neural interface at the critical region while providing the elongated probe system with a robust body.

CONNECTOR PACKAGE AND HEADSTAGE INTERFACE
The Vector Array™ uses the H package.

Implantable Length:70 mm
Silicon Electrode Length:10 mm, 12 mm
Site Layout:Edge or Poly2(customizable)
Site Coverage:375 μm to 6300 μm, depending on design
Silicon Electrode Width:20 μm (min) ≈ 175 μm (max)
Channel Count:16, 32, 64
Support Body Diameter:315 μm OD (16-ch) 400 μm OD (32-ch,64-ch)

Accessory Description
Omnetics32-M-F-Jumper_MRI MRI compatible, 32-ch Omnetics male-to-female jumper (approx. 2.5″)
Omnetics32/16_x2-Jumper_MRI MRI compatible, 32-ch Omnetics male to 2x 16-ch Omnetics female jumper (2.25″)
Adpt-OM32-A32 Connects to 32-ch Samtec headstage
Adpt-OM32-OM16 Down-converts to 16-ch Omnetics connector. Flexible wiring/channel mapping.
Adpt-OM32-OM16x2 Connects to two 16-ch Omnetics headstages
Adpt-OM32-Z32 Connects to 32-ch Zif Clip™ headstage
Guidetube Stainless steel, 23 Gauge, 35 mm length
Vector Array Alignment Device Contact us for microdrive-specific designs
