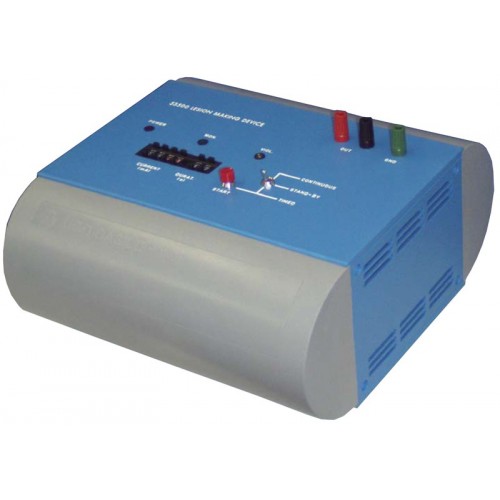

Ugo Basile Lesion Making Device

Product Code: 220

This compact, solid state direct current (DC) Lesion Maker has been designed for the production of localized lesions in small animals. The current generator is protected against short circuit, which prevents the electronics from getting damaged when the electrodes accidentally come into contact with each other.

The Basile Lesion Making Device provides constant DC current in mA from 10 to 99.99 mA. The pulse duration may be timed by the instrument between 1 and 99 seconds, or manually controlled.

A yellow LED warns when the impedance is too high for the preset current. The current generator is protected against accidental short circuit of the output. Maximum electrode resistance is 20 MΩ (10μA) down to 2 KΩ (100mA) and Compliance Voltage is from 1-99V.

Comes complete with set of 3 output plugs

Related Products

ITEM DESCRIPTION

53500 Ugo Basile Lesion Making Device

53500V Ugo Basile Lesion Making Device, 220V***DISCONTINUED

Current Range 10 µA to 99 mA

Max Electrode Resistance 20 MO (10 µA) down to 2KO (100 mA)

Pulse Duration 1-99 sec. or manually controlled

Compliance Volatage 200V

Shipping Wt.: 6 lbs. (2.8 kg)

Dimensions (cm): 25 x 15 x 11
