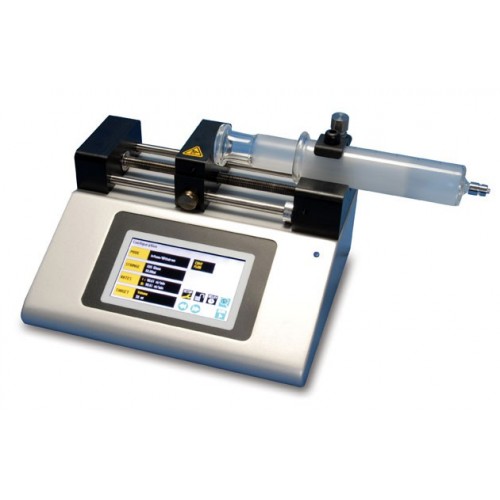

Touch-Screen Syringe Pumps

Product Code: 207

Highest level of smooth flow, accuracy and precision!

The unique Legato Series offers unparalleled ease of use through the high resolution touch-screen user interface. This new level of simplicity is combined with advanced fluidic performance to give you the highest level of smooth flow, accuracy and precision to meet all your application needs including drug discovery, nanofluidics, mass spectrometry and more. The Legato series of syringe pumps are available as Infuse Only, Infusion/Withdrawl and Push/Pull Syringe Pumps.

Syringe Pump Features:

• Touch-screen interface and easy-to-use display

• Vertical positioning decreases footprint

• Interconnect up to 99 pumps

• Complete regulatory compliance worldwide

The unique Legato Series offers unparalleled ease of use.

Touch screen 2 syringe infusion pump

Infuse only dual syringe pump. accommodates 2 syringes. User definable flow rates with selectable target volume or time values to control the total infusion volume.

Features:

Holds one or two syringes from 0.5ul to 140ml

High resolution color touch screen

Real time clock

Unparallel ease of use

Touch pad “lock” feature

LED light on front panel

Full metal chassis

Built in syringe table

Up to 75 lbs linear force

Advanced microstepping techniques

Built in RS485 interface

USB port

I/O & TTL interface

Continuous mode of operation

Spill dam

Legendary Reliability

Our experience in pumps and fluidics was used to create the Legato 200 Series. Over the years, customers had asked to display more information simultaneously and make it easier to configure and run complicated multi-step programs. The high resolution touch screen interface offers unparalleled ease of use. Today’s demanding applications require better flow performance and repeatability down to 1 nl/hr. Legato offers 0.35% accuracy and 0.5% repeatability.

Designed to meet today’s challenges

In today’s economic environment, multiple users with different experiments are using the same pump. The next generation of pump had to meet this demand to store and recall multiple programs. The pumps role in the experiment now changes more readily with multiple users and multiple tests being done using a single pump.

Global regulatory compliance

Worldwide use of our pumps and changing regulatory compliance meant designing the pump to meet RoHS and WEEE, CE, UL, CSA, and CB schemes. The Legato has lead free boards and is designed to the latest safety and EMI/RFI standards.

Related Products

ITEM DESCRIPTION

53100L Single Syringe Pump, Infusion Only, Legato

53101L Nanoliter Syringe Pump, Infusion Only, Legato

53104L Picoliter Single Syringe Programmable Pump, Legato

53105L Picoliter Dual Syringe Programmable Pump, Legato

53102L Single Syringe Programmable Pump, Legato

53103L Dual Syringe Programmable Pump, Legato, 0.5ul-10mL

53200L Dual Syringe Pump, Infusion Only, Legato

53210L Dual Syringe Pump, Legato

53212L Dual Syringe Pump, Programmable, Legato 0.5ul-140mL

53270L Quad Syringe Pump, Legato

53272L Quad Syringe Pump, Programmable, Legato

Touch screen 2 syringe infusion pump

Accuracy: ± 0.35%

Reproducibility ± 0.05%

Syringes (Min/Max) 0.5 ul to 140ml

Flow Rate: Minimum (0.5 ul syringe): 5pl/min

Maximum (140ml syringe): 220.97 ml/min

Display 4.3 WQVGA TFT Color Display with Touchpad

Non-Volatile Memory Stores all Settings

Connectors: RS232 – 9Pin D-Sub Connector

RS485 – IEEE-1394 6 pos

USB – Type B

I/O & TTL – 15 pin D-Sub Connector

Linear Force (Max) 34 kg (75 lbs) @ 100% Force Selection

Drive Motor 1.8 degree Stepper Motor

Motor Drive Control Microprocessor with 1/16 microstepping

Number of Microsteps per one rev.of Lead Screw 6,400

Step Rate – Minimum 27.5 sec/ustep

Step Rate – Maximum 26 usec/ustep

Pusher Travel Rate – Minimum 0.36 um/min

Pusher Travel Rate – Maximum 190.80 mm/min

Power 100-240 VAC: 50/60 Hz, 50 W, 0.5 A fuse

Dimensions 8.89 x 25.4 x 27.94 cm (3.5 x 10 x 11 in)

Weight 4.9 Kg (10.75 lb)

Operating Temperature 4 degree’C to 40 degree C (40 degree F to 104 degree F)

Storage Temperature -10 degreeC to 70 degree C (14 degree F to 158 degree F)

Humidity 20% to 80% RH non condensing

Mode of Operation Continuous

Classification Class 1

Pollution Degree 1

Installation Category 11

Regulatory Certification CE, UL, CSA, CB Scheme, EU RoHS
