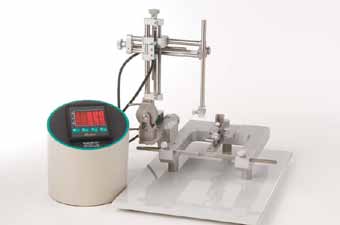

Building on the Classic Lab Standard&trade Stereotaxic design, our Digital model offers greater speed of operation and increased accuracy. Fit with an easy-to-read digital display and sealed electronic sensors operation of the instrument is easy and precise. Simply move your probe to an established reference point (e.g. Bregma), zero the LED display and move to the desired coordinates.
A zeroing function allows the user to set a reference point for targeting specific coordinates on the animal’s skull for injection, implantation, etc. Calculation of distance measurements via the vernier scales is thus no longer necessary…saving the user valuable time and improving accuracy.
The classic design and high quality of our conventional Lab Standard™ manipulators are exactly the same on the new Digital Stereotaxic, with no drift and smooth movements. The Digital Lab Standard™ keeps the custom triple-start lead screws to allow fast positioning, while maintaining consistently smooth movement. The thin cords from the sensors do not interfere with movements, allowing the arm to move freely and be set at any angle.
10 micron resolution in all three directions
Features
Zeroing function for targeting specific coordinates
Easy-to-read digital display offers 10 micron resolution in all three axes
Triple-lead screws for fast positioning
80mm of dorsal-ventral, medial-lateral and anterior-posterior travel
Absolute lock at 90° vertical
Adaptors available for mice,neonatal rats, birds and most other species
Easily cleaned, durable surface
Saves Time and Improves Accuracy
Stoelting introduces its latest innovation to our Lab Standard™ Stereotaxic Instruments. We have added a sealed electronic sensor, highly immune to outside interference and environmental conditions, to each axis of the manipulator arm. Measurements are accurate to 10 microns in all three directions. Movements are now monitored by a large, easy-to-read LED display module, with resolution as precise as 10 microns.
Memory
Target coordinates can be programmed into the memory of the digital display box of the Digital Lab Standard™.
Zeroing Function
A zeroing function makes setting a reference point for targeting specific coordinates on the animal’s skull as easy as 1-2-3. The display of each axis can be “ZERO”ed at any location, making operation simple and straightforward. To target a specific location, start at Bregma, and reset all coordinates to zero. Move the manipulator arm to the desired point and lower the electrode, probe, or micropipette into place.
Find reference point, e.g. Bregma
Reset zero on LED display
Move to the desired coordinates
Versatility of Positioning
The universal joint allows the investigator to angle the probe in either the anterior-posterior or the lateral-medial planes. The improved locking mechanism on the Lab Standard™ Stereotaxic Instruments will hold any angled position without slippage. Of course, it also provides an absolute lock at the vertical position. The manipulator arm may be swiveled out of the way for convenience in installing the animal or performing a procedure, then returned to the same point reliably with the aid of the locking face block above the swivel joint.
Accessories
All of the accessories for the Lab Standard™ Small Animal Stereotaxic Instrument fit the 51900 and 51903 Digital Lab Standard™ Small Animal Stereotaxic Instrument. Probe holders and species adapters for “U” frame stereotaxic instruments made by other manufacturers are generally compatible with the Lab Standard frame.
The 51900 and 51903 Digital Lab Standard™ Small Animal Stereotaxic Instruments come complete with a standard probe holder with corner clamp (51631) and a Rat Adapter (51621) with nose holder and 18 degree taper ear bars. The 51950 and 51953 include the non-puncture (45°) ear bars instead of the 18-degree ear bars. They are otherwise identical to the 51900 and 51903.
The time-proven U-Frame design concept, rugged construction, and adaptability to most species used in the lab make Stoelting’s Lab Standard™ series the best choice for stereotaxic instruments.
Your Choice of Three Purchasing Options
New Digital Lab Standard™ Stereotaxic Instrument complete with LED Digital Display.
Add new Digital Manipulator Arms and an LED Display to your current Lab Standard™ or similar brand of stereotaxic.
Convert your existing Lab Standard™ (or most other brands) by adding digital sensors to their manipulator arms. LED Display Module included.
Related Products
ITEM DESCRIPTION
51900 Digital Lab Standard Stereotaxic, Rat
51950 Digital Lab Standard Stereotaxic, Rat (non-rupture ear bars)
51903 Digital Dual Lab Standard Stereotaxic, Rat
51953 Digital Dual Lab Standard, Rat (non-rupture ear bars)
But the NEW Standard “design” is what sets it apart:
Revolutionary vertically-adjusting ear and nose bar posts
Revolutionary horizontally-adjusting ear and nose bar posts
Designed for both Rats and Mice all on the same base
No U-frame, maximizes operating space
Traditional and non-traumatic Rat ear bars
Includes the innovative Mouse ear bars
Includes Mouse and Rat Nose adaptors
Includes the innovative Mouse ear bars
Includes Mouse and Rat nose adaptor
Includes dual tip ear bars with traumatic (18°) and non-traumatic (45°) ear bars
