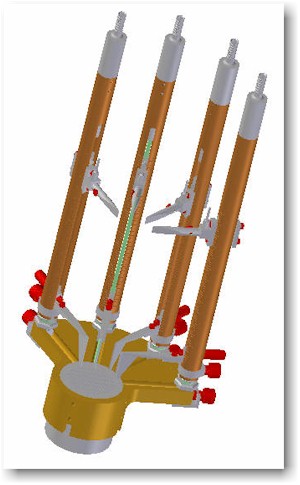

NAN Drive NAN-S4

Product Code: 94

NAN instruments presents a revolutionary positioning device for Microelectrodes and Tetrods, used in Extracellular recording.
NAN-S4 is a modular Extracellular micromanipulator.

Features
Each terminal holds a group of up to 4 electrodes.
Each group of electrodes is independently manipulated in the XY planes, within a user defined working range.
Each group of electrodes is independently manipulated in the Z direction within a user defined working depth (up to 100 mm) and variable speed range from 0.001mm /sec to 0.5 mm/sec and a high resolution of 1 micrometer
Modular number of Terminals in resolution of 1.
Light weight – e.g. 100 channels system weights 157gr including: Well (7gr), Base (22.7gr) and 25
Terminals of 5.1gr each.
Special cover that can be used to seal the system hermetically for leaving it on the head over night.
User friendly computer controlled system.
Built in Head Stage.
